本文實例為大家分享了Android自定義view實現TextView方形輸入框的具體代碼，供大家參考，具體內容如下

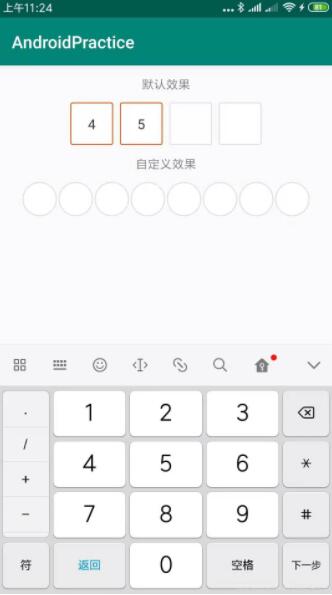

先奉上最終效果圖

1、 使用一個LinearLayout用來填充每一個小方格，通過動態添加，實現出需要數量的輸入框2、 在LinearLayout上覆蓋一層大小和LinearLayout大小完全一致的EditText，用來接口輸入信息，設置EditText輸入背景和文字為透明，并設置不展示光標，3、 監聽EditText的內容變化，和LinearLayout的內容綁定，實現每次輸入都由LinearLayout的子布局展示出來

布局文件

<?xml version='1.0' encoding='utf-8'?><RelativeLayout xmlns:android='http://schemas.android.com/apk/res/android'xmlns:app='http://schemas.android.com/apk/res-auto'android:layout_width='wrap_content'android:layout_height='wrap_content'> <LinearLayout android:orientation='horizontal' android: android:gravity='center' android:showDividers='middle' android:layout_width='wrap_content' android:layout_height='wrap_content'/> <EditText android: android:inputType='number' android:background='@android:color/transparent' android:layout_width='wrap_content' android:layout_height='wrap_content' android:textColor='@android:color/transparent'/></RelativeLayout>

在代碼中動態創建LinearLayout子布局填充，并綁定監聽

private fun initContainer() { //動態設置EditText的大小inputReal = findViewById(R.id.inputReal)rvContentList = findViewById(R.id.rvContentList)inputReal.width = (dividerDrawable?.minimumWidth ?: 0 * (verifyCodeLen - 1)) + inputBoxSize * verifyCodeLeninputReal.height = inputBoxSizeinputReal.setTextSize(TypedValue.COMPLEX_UNIT_PX, inputTextSize * 1.0F) //禁用光標inputReal.isCursorVisible = falseinputReal.filters = arrayOf(InputFilter.LengthFilter(verifyCodeLen))inputTextView.clear() //動態添加LinearLayout之間的分割線dividerDrawable?.let { it.setBounds(0, 0, it.minimumWidth, it.minimumHeight) rvContentList.dividerDrawable = it}for (i in 0 until verifyCodeLen) { val textView = TextView(context) textView.setTextSize(TypedValue.COMPLEX_UNIT_PX, inputTextSize * 1.0F) textView.width = inputBoxSize textView.height = inputBoxSize textView.gravity = Gravity.CENTER textView.isFocusable = false textView.textColor = inputTextColor textView.backgroundResource = itemSelector inputTextView.add(textView)}inputTextView.forEach { rvContentList.addView(it)} }

inputReal.addTextChangedListener(object : TextWatcher { override fun afterTextChanged(p0: Editable?) {setVerifyCodeInputValue(p0.toString())if (p0.toString().length == verifyCodeLen) { onCompleteListener?.onComplete(p0.toString())} } override fun beforeTextChanged(p0: CharSequence?, p1: Int, p2: Int, p3: Int) { } override fun onTextChanged(p0: CharSequence?, p1: Int, p2: Int, p3: Int) { }})

private fun setVerifyCodeInputValue(inputText: String) { inputTextView.forEach {it.text = ''it.isSelected = false } inputTextView.forEachIndexed { index, textView ->if (inputText.length > index) { textView.isSelected = true textView.text = inputText[index].toString()} }}

核心代碼就到這里了，為了方便擴展，可以在加入自定義屬性，動態設置擴展效果，這里就不說明了，直接看代碼即可

package org.fireking.ap.custom.viewgroup.viewimport android.content.Contextimport android.content.res.TypedArrayimport android.graphics.Colorimport android.graphics.drawable.Drawableimport android.text.Editableimport android.text.InputFilterimport android.text.Spannedimport android.text.TextWatcherimport android.util.AttributeSetimport android.util.Logimport android.util.TypedValueimport android.view.Gravityimport android.view.LayoutInflaterimport android.widget.*import androidx.core.view.forEachimport androidx.recyclerview.widget.RecyclerViewimport org.fireking.ap.Rimport org.jetbrains.anko.backgroundColorimport org.jetbrains.anko.backgroundResourceimport org.jetbrains.anko.textColorclass VerifyCodeInputLayout(context: Context, attrs: AttributeSet?, defStyleAttr: Int) : RelativeLayout(context, attrs, defStyleAttr) { private lateinit var inputReal: EditText private lateinit var rvContentList: LinearLayout private var onCompleteListener: OnCompleteListener? = null private var verifyCodeLen = 0 private var inputTextSize: Int = 0 private var inputTextColor: Int = 0 private var inputBoxSize: Int = 0 private var verifyInputLayoutHeight = 0 private var dividerDrawable: Drawable? = null private var itemSelector: Int = R.drawable.verify_code_text_selector private var inputTextView = ArrayList<TextView>(4) constructor(context: Context, attrs: AttributeSet?) : this(context, attrs, 0) {LayoutInflater.from(context).inflate(R.layout.verify_code_input_layout, this, true)//設置默認值verifyCodeLen = 4inputTextSize = TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_SP, 16.0F, resources.displayMetrics).toInt()inputTextColor = Color.parseColor('#FF333333')inputBoxSize = TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, 50F, resources.displayMetrics).toInt()dividerDrawable = context.resources.getDrawable(R.drawable.linearlayout_divider)//獲取自定義屬性值val a = context.obtainStyledAttributes(attrs, R.styleable.VerifyCodeInputLayout)if (a.hasValue(R.styleable.VerifyCodeInputLayout_textSize)) { inputTextSize = a.getDimensionPixelSize(R.styleable.VerifyCodeInputLayout_textSize, inputTextSize)}if (a.hasValue(R.styleable.VerifyCodeInputLayout_textColor)) { inputTextColor = a.getColor(R.styleable.VerifyCodeInputLayout_textColor, Color.parseColor('#FF333333'))}if (a.hasValue(R.styleable.VerifyCodeInputLayout_inputBoxSize)) { inputBoxSize = a.getDimensionPixelSize(R.styleable.VerifyCodeInputLayout_inputBoxSize,TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, 44F, resources.displayMetrics).toInt() )}if (a.hasValue(R.styleable.VerifyCodeInputLayout_dividerDrawable)) { dividerDrawable = a.getDrawable(R.styleable.VerifyCodeInputLayout_dividerDrawable)}if (a.hasValue(R.styleable.VerifyCodeInputLayout_itemSelector)) { itemSelector = a.getResourceId(R.styleable.VerifyCodeInputLayout_itemSelector, itemSelector)}if (a.hasValue(R.styleable.VerifyCodeInputLayout_maxLength)) { verifyCodeLen = a.getInt(R.styleable.VerifyCodeInputLayout_maxLength, 4)}a.recycle() } override fun onMeasure(widthMeasureSpec: Int, heightMeasureSpec: Int) {super.onMeasure(widthMeasureSpec, heightMeasureSpec)verifyInputLayoutHeight = measuredHeight } fun setOnCompleteListener(onCompleteListener: OnCompleteListener) {this.onCompleteListener = onCompleteListener } override fun onFinishInflate() {super.onFinishInflate()initContainer()initListener() } private fun initListener() {inputReal.addTextChangedListener(object : TextWatcher { override fun afterTextChanged(p0: Editable?) {setVerifyCodeInputValue(p0.toString())if (p0.toString().length == verifyCodeLen) { onCompleteListener?.onComplete(p0.toString())} } override fun beforeTextChanged(p0: CharSequence?, p1: Int, p2: Int, p3: Int) { } override fun onTextChanged(p0: CharSequence?, p1: Int, p2: Int, p3: Int) { }}) } private fun setVerifyCodeInputValue(inputText: String) {inputTextView.forEach { it.text = '' it.isSelected = false}inputTextView.forEachIndexed { index, textView -> if (inputText.length > index) {textView.isSelected = truetextView.text = inputText[index].toString() }} } private fun initContainer() {inputReal = findViewById(R.id.inputReal)rvContentList = findViewById(R.id.rvContentList)inputReal.width = (dividerDrawable?.minimumWidth ?: 0 * (verifyCodeLen - 1)) + inputBoxSize * verifyCodeLeninputReal.height = inputBoxSizeinputReal.setTextSize(TypedValue.COMPLEX_UNIT_PX, inputTextSize * 1.0F)inputReal.isCursorVisible = falseinputReal.filters = arrayOf(InputFilter.LengthFilter(verifyCodeLen))inputTextView.clear()dividerDrawable?.let { it.setBounds(0, 0, it.minimumWidth, it.minimumHeight) rvContentList.dividerDrawable = it}for (i in 0 until verifyCodeLen) { val textView = TextView(context) textView.setTextSize(TypedValue.COMPLEX_UNIT_PX, inputTextSize * 1.0F) textView.width = inputBoxSize textView.height = inputBoxSize textView.gravity = Gravity.CENTER textView.isFocusable = false textView.textColor = inputTextColor textView.backgroundResource = itemSelector inputTextView.add(textView)}inputTextView.forEach { rvContentList.addView(it)} } interface OnCompleteListener {fun onComplete(content: String) }}

自定義屬性

<?xml version='1.0' encoding='utf-8'?><resources> <declare-styleable name='VerifyCodeInputLayout'><attr name='textSize' format='dimension'/><attr name='textColor' format='color'/><attr name='inputBoxSize' format='dimension'/><attr name='dividerDrawable' format='reference'/><attr name='maxLength' format='integer'/><attr name='itemSelector' format='reference'/> </declare-styleable></resources>

以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持好吧啦網。
