該篇介紹的內容如題，就是利用redis實現接口的限流（ 某時間范圍內 最大的訪問次數 ） 。

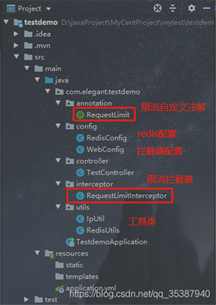

慣例，先看下我們的實戰目錄結構：

首先是pom.xml 核心依賴：

<!--用于redis數據庫連接--><dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-data-redis</artifactId></dependency><!--用于redis lettuce 連接池pool使用--><dependency> <groupId>org.apache.commons</groupId> <artifactId>commons-pool2</artifactId></dependency><dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId></dependency>

然后是application.yml里面的redis接入配置：

spring: redis: lettuce: pool:#連接池最大連接數 使用負值代表無限制 默認為8max-active: 10#最大空閑連接 默認8max-idle: 10#最小空閑連接 默認0min-idle: 1 host: 127.0.0.1 password: 123456 port: 6379 database: 0 timeout: 2000msserver: port: 8710

redis的配置類， RedisConfig.java：

ps：可以看到日期是18年的，因?yàn)檫@些redis的整合教程，在這個系列里面一共有快10篇，不了解的看客如果感興趣可以去看一看。

import com.fasterxml.jackson.annotation.JsonAutoDetect;import com.fasterxml.jackson.annotation.PropertyAccessor;import com.fasterxml.jackson.databind.ObjectMapper;import org.springframework.cache.CacheManager;import org.springframework.cache.annotation.EnableCaching;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import org.springframework.data.redis.cache.RedisCacheConfiguration;import org.springframework.data.redis.cache.RedisCacheManager;import org.springframework.data.redis.connection.RedisConnectionFactory;import org.springframework.data.redis.core.RedisTemplate;import org.springframework.data.redis.core.StringRedisTemplate;import org.springframework.data.redis.serializer.Jackson2JsonRedisSerializer;import org.springframework.data.redis.serializer.RedisSerializationContext;import org.springframework.data.redis.serializer.StringRedisSerializer; import static org.springframework.data.redis.cache.RedisCacheConfiguration.defaultCacheConfig; /** * @Author: JCccc * @CreateTime: 2018-09-11 * @Description: */@Configuration@EnableCachingpublic class RedisConfig { @Bean public CacheManager cacheManager(RedisConnectionFactory connectionFactory) {RedisCacheConfiguration cacheConfiguration =defaultCacheConfig().disableCachingNullValues().serializeValuesWith(RedisSerializationContext.SerializationPair.fromSerializer(new Jackson2JsonRedisSerializer(Object.class)));return RedisCacheManager.builder(connectionFactory).cacheDefaults(cacheConfiguration).build(); } @Bean public RedisTemplate<String, Object> redisTemplate(RedisConnectionFactory factory) {RedisTemplate<String, Object> redisTemplate = new RedisTemplate<>();redisTemplate.setConnectionFactory(factory);Jackson2JsonRedisSerializer jackson2JsonRedisSerializer = new Jackson2JsonRedisSerializer(Object.class);ObjectMapper om = new ObjectMapper();om.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY);om.enableDefaultTyping(ObjectMapper.DefaultTyping.NON_FINAL);jackson2JsonRedisSerializer.setObjectMapper(om);//序列化設置 ，這樣為了存儲操作對象時正常顯示的數據，也能正常存儲和獲取redisTemplate.setKeySerializer(new StringRedisSerializer());redisTemplate.setValueSerializer(jackson2JsonRedisSerializer);redisTemplate.setHashKeySerializer(new StringRedisSerializer());redisTemplate.setHashValueSerializer(jackson2JsonRedisSerializer);return redisTemplate; } @Bean public StringRedisTemplate stringRedisTemplate(RedisConnectionFactory factory) {StringRedisTemplate stringRedisTemplate = new StringRedisTemplate();stringRedisTemplate.setConnectionFactory(factory);return stringRedisTemplate; }}

自定義注解：

import java.lang.annotation.*; /** * @Author JCccc * @Description * @Date 2021/7/23 11:46 */@Inherited@Documented@Target({ElementType.FIELD, ElementType.TYPE, ElementType.METHOD})@Retention(RetentionPolicy.RUNTIME)public @interface RequestLimit { /** * 時間內 秒為單位 */ int second() default 10; /** * 允許訪問次數 */ int maxCount() default 5; //默認效果 ： 10秒內 對于使用該注解的接口，只能總請求訪問數 不能大于 5次 }

接下來是攔截器 RequestLimitInterceptor.java：

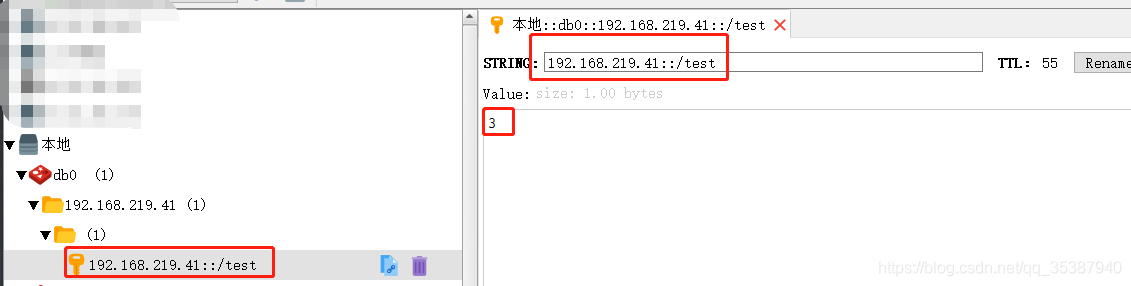

攔截接口的方式 是通過 ip地址+接口url ，做時間內的訪問計數

import com.elegant.testdemo.annotation.RequestLimit;import com.elegant.testdemo.utils.IpUtil;import com.fasterxml.jackson.databind.ObjectMapper;import org.slf4j.Logger;import org.slf4j.LoggerFactory;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.data.redis.core.RedisTemplate;import org.springframework.stereotype.Component;import org.springframework.web.method.HandlerMethod;import org.springframework.web.servlet.HandlerInterceptor; import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResponse;import java.io.IOException;import java.util.concurrent.TimeUnit; /** * @Author JCccc * @Description * @Date 2021/7/23 11:49 */ @Componentpublic class RequestLimitInterceptor implements HandlerInterceptor { private final Logger log = LoggerFactory.getLogger(this.getClass()); @Autowired private RedisTemplate<String, Object> redisTemplate; @Override public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {try { if (handler instanceof HandlerMethod) {HandlerMethod handlerMethod = (HandlerMethod) handler;// 獲取RequestLimit注解RequestLimit requestLimit = handlerMethod.getMethodAnnotation(RequestLimit.class);if (null==requestLimit) { return true;}//限制的時間范圍int seconds = requestLimit.second();//時間內的 最大次數int maxCount = requestLimit.maxCount();String ipAddr = IpUtil.getIpAddr(request);// 存儲keyString key = ipAddr+':'+request.getContextPath() + ':' + request.getServletPath();// 已經訪問的次數Integer count = (Integer) redisTemplate.opsForValue().get(key);log.info('檢測到目前ip對接口={}已經訪問的次數', request.getServletPath() , count);if (null == count || -1 == count) { redisTemplate.opsForValue().set(key, 1, seconds, TimeUnit.SECONDS); return true;}if (count < maxCount) { redisTemplate.opsForValue().increment(key); return true;}log.warn('請求過于頻繁請稍后再試');returnData(response);return false; } return true;} catch (Exception e) { log.warn('請求過于頻繁請稍后再試'); e.printStackTrace();}return true; } public void returnData(HttpServletResponse response) throws IOException {response.setCharacterEncoding('UTF-8');response.setContentType('application/json; charset=utf-8');ObjectMapper objectMapper = new ObjectMapper();//這里傳提示語可以改成自己項目的返回?cái)?shù)據封裝的類response.getWriter().println(objectMapper.writeValueAsString('請求過于頻繁請稍后再試'));return; } }

接下來是 攔截器的配置 WebConfig.java:

import com.elegant.testdemo.interceptor.RequestLimitInterceptor;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.context.annotation.Configuration;import org.springframework.web.servlet.config.annotation.InterceptorRegistry;import org.springframework.web.servlet.config.annotation.WebMvcConfigurer; /** * @Author JCccc * @Description * @Date 2021/7/23 11:52 */ @Configurationpublic class WebConfig implements WebMvcConfigurer { @Autowired private RequestLimitInterceptor requestLimitInterceptor; @Override public void addInterceptors(InterceptorRegistry registry) {registry.addInterceptor(requestLimitInterceptor) //攔截所有請求路徑.addPathPatterns('/**')//再設置 放開哪些路徑.excludePathPatterns('/static/**','/auth/login'); } }

最后還有兩個工具類

IpUtil：

https://www.jb51.net/article/218249.htm

RedisUtil :

https://www.jb51.net/article/218246.htm

最后寫個測試接口

TestController.java

import com.elegant.testdemo.annotation.RequestLimit;import org.springframework.web.bind.annotation.GetMapping;import org.springframework.web.bind.annotation.RestController; /** * @Author JCccc * @Description * @Date 2021/7/23 11:55 */@RestControllerpublic class TestController { @GetMapping('/test') @RequestLimit(maxCount = 3,second = 60) public String test() {return '你好，如果對你有幫助，請點贊加關注。'; } }

這個/test接口的注解，我們?cè)O(shè)置的是 60秒內 最大訪問次數為 3次 （實際應用應該是根據具體接口做相關的次數限制。）

然后使用postman測試一下接口：

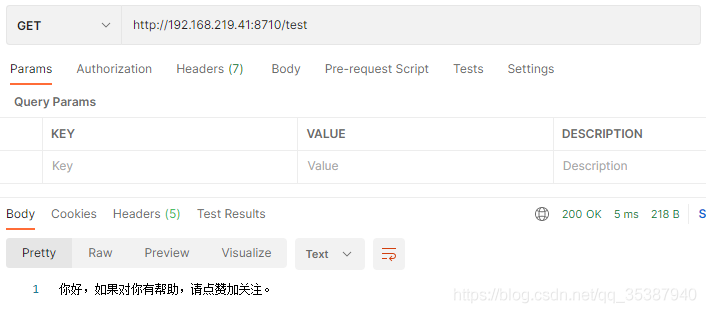

前面三次都是請求通過的：

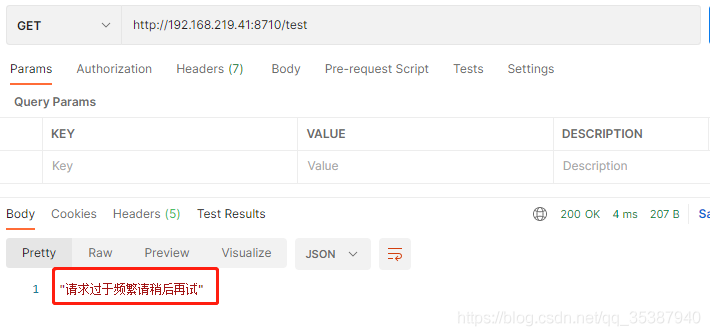

第四次：

到此這篇關于Springboot使用redis實現接口Api限流的實例的文章就介紹到這了,更多相關Springboot redis接口Api限流內容請搜索好吧啦網以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持好吧啦網！
