目錄

• 操作環境：
• 一、usermanager采用文件形式管理xml示例如下
• 二、usermanager采用mysql數據庫管理用戶時，ftpd-mysql.xml示例如下
• 三、usermanager采用Sqlite數據庫管理用戶時，ftpd-sqlite.xml示例如下
• 四、解決ftpd.exe在64位windows系統啟動失敗的問題
• 五、python操作sqlite的ftp.db管理（增加刪除）用戶

操作環境：

• win2012r2 x64 datacenter
• Apache FtpServer 1.2.0
• Java SE Development Kit 8u333
• commons-dbcp2-2.9.0.jar
• commons-pool2-2.11.1.jar
• mysql server 8.0.29
• mysql-connector-java-8.0.29.jar
• sqlite
• sqlite-jdbc-3.36.0.3.jar

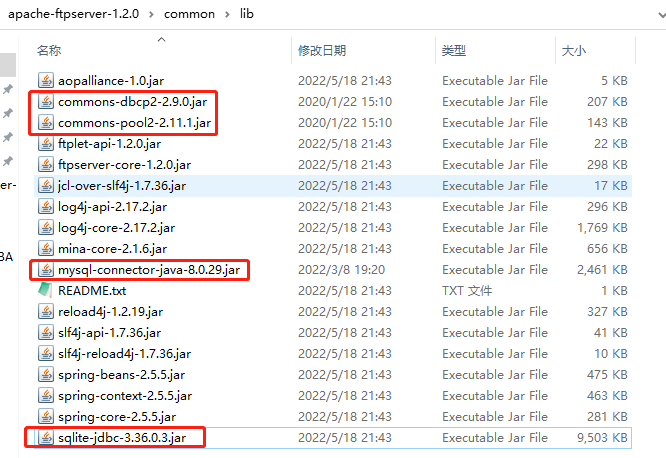

如下圖：

一、usermanager采用文件形式管理xml示例如下

<?xml version="1.0" encoding="UTF-8"?>  <!--    Licensed to the Apache Software Foundation (ASF) under one or more    contributor license agreements. See the NOTICE file distributed with    this work for additional information regarding copyright ownership.    The ASF licenses this file to you under the Apache License, Version    2.0 (the "License"); you may not use this file except in compliance    with the License. You may obtain a copy of the License at    http://www.apache.org/licenses/LICENSE-2.0 Unless required by    applicable law or agreed to in writing, software distributed under the    License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR    CONDITIONS OF ANY KIND, either express or implied. See the License for    the specific language governing permissions and limitations under the    License.  --><server xmlns="http://mina.apache.org/ftpserver/spring/v1"  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"  xsi:schemaLocation="     http://mina.apache.org/ftpserver/spring/v1 https://mina.apache.org/ftpserver-project/ftpserver-1.0.xsd       "  id="myServer">  <listeners>    <nio-listener name="default" port="21"><ssl><keystore file="./res/ftpserver.jks" password="password" />    </ssl>    </nio-listener>  </listeners>  <file-user-manager file="./res/conf/users.properties" /></server>

二、usermanager采用mysql數據庫管理用戶時，ftpd-mysql.xml示例如下

目前數據庫管理用戶時采用的明文存儲，salted和md5的方式沒有測試成功，如有測試成功的朋友請指導一下。

<?xml version="1.0" encoding="UTF-8"?><!-- Licensed to the Apache Software Foundation (ASF) under one or more contributor     license agreements. See the NOTICE file distributed with this work for additional     information regarding copyright ownership. The ASF licenses this file to     you under the Apache License, Version 2.0 (the "License"); you may not use     this file except in compliance with the License. You may obtain a copy of     the License at http://www.apache.org/licenses/LICENSE-2.0 Unless required     by applicable law or agreed to in writing, software distributed under the     License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS     OF ANY KIND, either express or implied. See the License for the specific     language governing permissions and limitations under the License. --><server xmlns="http://mina.apache.org/ftpserver/spring/v1"    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:beans="http://www.springframework.org/schema/beans"    xsi:schemaLocation="   http://www.springframework.org/schema/beans   http://www.springframework.org/schema/beans/spring-beans-2.5.xsd   http://mina.apache.org/ftpserver/spring/v1   http://mina.apache.org/ftpserver/ftpserver-1.0.xsd   "    id="myServer">    <listeners><nio-listener name="default" port="21">    <ssl><keystore file="./res/ftpserver.jks" password="password" />    </ssl></nio-listener>    </listeners>    <db-user-manager encrypt-passwords="clear"><data-source>    <beans:bean><beans:property name="driverClassName" value="com.mysql.jdbc.Driver" /><beans:property name="url" value="jdbc:mysql://localhost/ftpserver" /><beans:property name="username" value="root" /><beans:property name="password" value="123456" />    </beans:bean></data-source><insert-user>INSERT INTO FTP_USER (userid, userpassword,    homedirectory, enableflag, writepermission, idletime, uploadrate,    downloadrate) VALUES ("{userid}", "{userpassword}",    "{homedirectory}",    {enableflag}, {writepermission}, {idletime},    {uploadrate},    {downloadrate})</insert-user><update-user>UPDATE FTP_USER SET    userpassword="{userpassword}",homedirectory="{homedirectory}",enableflag={enableflag},writepermission={writepermission},idletime={idletime},uploadrate={uploadrate},downloadrate={downloadrate}    WHERE userid="{userid}"</update-user><delete-user>DELETE FROM FTP_USER WHERE userid = "{userid}"</delete-user><select-user>SELECT userid, userpassword, homedirectory,    enableflag, writepermission, idletime, uploadrate, downloadrate,    maxloginnumber, maxloginperip FROM    FTP_USER WHERE userid = "{userid}"</select-user><select-all-users>    SELECT userid FROM FTP_USER ORDER BY userid</select-all-users><is-admin>SELECT userid FROM FTP_USER WHERE userid="{userid}"    AND    userid="admin"</is-admin><authenticate>SELECT userpassword from FTP_USER WHERE    userid="{userid}"</authenticate>    </db-user-manager></server>

注意：org.apache.commons.dbcp2.BasicDataSource，看最新的commons.dbcp命名空間和1.x版本有區別

三、usermanager采用Sqlite數據庫管理用戶時，ftpd-sqlite.xml示例如下

<?xml version="1.0" encoding="UTF-8"?><!-- Licensed to the Apache Software Foundation (ASF) under one or more contributor     license agreements. See the NOTICE file distributed with this work for additional     information regarding copyright ownership. The ASF licenses this file to     you under the Apache License, Version 2.0 (the "License"); you may not use     this file except in compliance with the License. You may obtain a copy of     the License at http://www.apache.org/licenses/LICENSE-2.0 Unless required     by applicable law or agreed to in writing, software distributed under the     License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS     OF ANY KIND, either express or implied. See the License for the specific     language governing permissions and limitations under the License. --><server xmlns="http://mina.apache.org/ftpserver/spring/v1"    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:beans="http://www.springframework.org/schema/beans"    xsi:schemaLocation="   http://www.springframework.org/schema/beans   http://www.springframework.org/schema/beans/spring-beans-2.5.xsd   http://mina.apache.org/ftpserver/spring/v1   http://mina.apache.org/ftpserver/ftpserver-1.0.xsd   "    id="myServer">    <listeners><nio-listener name="default" port="21">    <ssl><keystore file="./res/ftpserver.jks" password="password" />    </ssl></nio-listener>    </listeners>    <db-user-manager encrypt-passwords="clear"><data-source>    <beans:bean><beans:property name="driverClassName" value="org.sqlite.JDBC" /><beans:property name="url" value="jdbc:sqlite:ftp.db" />    </beans:bean></data-source><insert-user>INSERT INTO FTP_USER (userid, userpassword,    homedirectory, enableflag, writepermission, idletime, uploadrate,    downloadrate) VALUES ("{userid}", "{userpassword}",    "{homedirectory}",    {enableflag}, {writepermission}, {idletime},    {uploadrate},    {downloadrate})</insert-user><update-user>UPDATE FTP_USER SET    userpassword="{userpassword}",homedirectory="{homedirectory}",enableflag={enableflag},writepermission={writepermission},idletime={idletime},uploadrate={uploadrate},downloadrate={downloadrate}    WHERE userid="{userid}"</update-user><delete-user>DELETE FROM FTP_USER WHERE userid = "{userid}"</delete-user><select-user>SELECT userid, userpassword, homedirectory,    enableflag, writepermission, idletime, uploadrate, downloadrate,    maxloginnumber, maxloginperip FROM    FTP_USER WHERE userid = "{userid}"</select-user><select-all-users>    SELECT userid FROM FTP_USER ORDER BY userid</select-all-users><is-admin>SELECT userid FROM FTP_USER WHERE userid="{userid}"    AND    userid="admin"</is-admin><authenticate>SELECT userpassword from FTP_USER WHERE    userid="{userid}"</authenticate>    </db-user-manager></server>

注意：commons的jar包還保留著，多了個操作sqlitejdbc的jar包，下載地址：GitHub - xerial/sqlite-jdbc: SQLite JDBC Driver

四、解決ftpd.exe在64位windows系統啟動失敗的問題

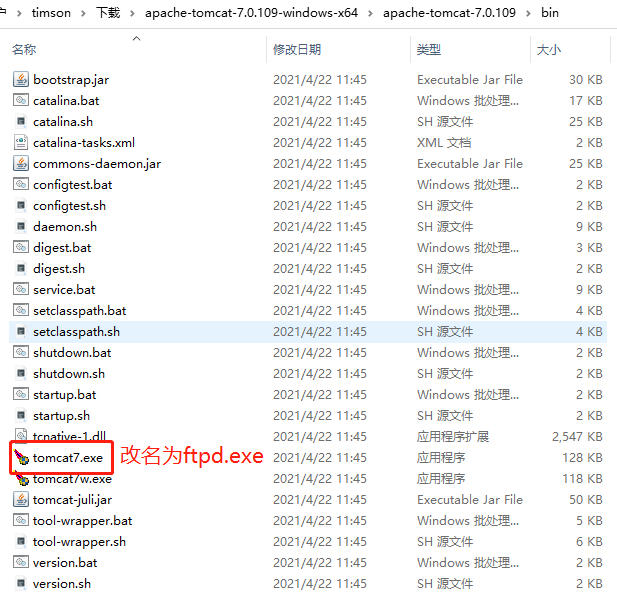

需下載tomcat包，目前測試的這個版本可行tomcat-7 v7.0.109 (apache.org)

放入apache ftpserver bin目錄里替換原有的ftpd.exe

這樣安裝為服務的時候就可以正常啟動了

五、python操作sqlite的ftp.db管理（增加刪除）用戶

自己搞了個python腳本，采用了sqlalchemy來操作數據庫

from sqlalchemy import create_enginefrom sqlalchemy import MetaData,Table,Column,Boolean,Integer,Stringimport osengine=create_engine("sqlite:///ftp.db")conn=engine.connect()metadata=MetaData()ftpusers=Table("FTP_USER",metadata,    Column("userid",String(64),primary_key=True),    Column("userpassword",String(64),nullable=False),    Column("homedirectory",String(128),nullable=False),    Column("enableflag",Boolean(),default=True),    Column("writepermission",Boolean(),default=True),    Column("idletime",Integer(),default=0),    Column("uploadrate",Integer(),default=0),    Column("downloadrate",Integer(),default=0),    Column("maxloginnumber",Integer(),default=0),    Column("maxloginperip",Integer(),default=0))metadata.create_all(engine)def addgeneraluser():	deluser = ftpusers.delete().where(ftpusers.c.userid=="nic")	rs = conn.execute(deluser)	dirname="./files/alluser"	if not os.path.exists(dirname):		os.mkdir(dirname)	ins=ftpusers.insert().values(		userid="nic",		userpassword="123321",		homedirectory=dirname,		writepermission=0,		maxloginnumber=1	)	result=conn.execute(ins)def addadmin():	deladmin = ftpusers.delete().where(ftpusers.c.userid=="admin")	rs = conn.execute(deladmin)	ins=ftpusers.insert().values(		userid="admin",		userpassword="123456",		homedirectory="./files",		writepermission=1	)	result=conn.execute(ins)def getusers():	sel=ftpusers.select()	rs=conn.execute(sel)	print(rs.fetchall())	addgeneraluser()getusers()

可以方便的增加用戶了，generaluser只讀權限只能同時登錄一個，admin權限可讀寫，不限制。
